BackAnalysis of BMW CAS3/3+ decryption data failed

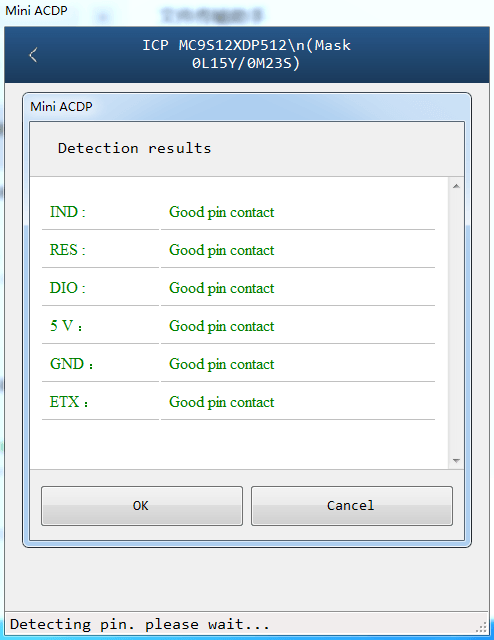

Question: When reading CAS3/3+ by ICP and all pin detection passes, Why the data cannot be read?

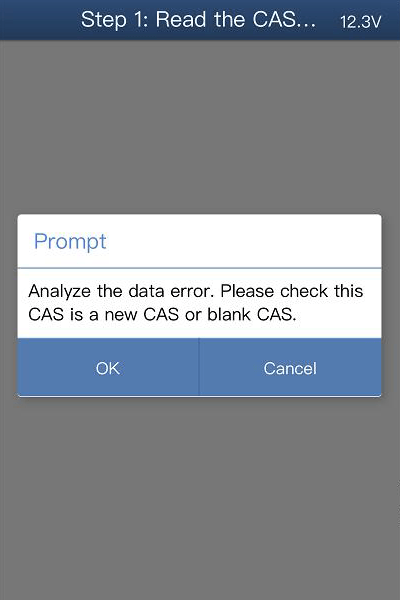

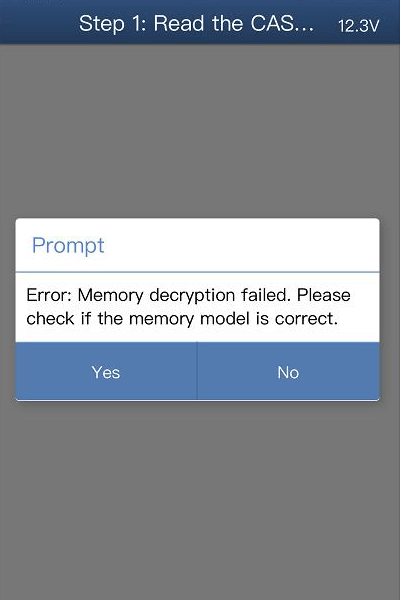

Specific tips are as below:
Answer: If the above problem occurs, the decryption progress bar will reach 100%. But in normal cases, the chip decryption progress bar will not reach 100%.

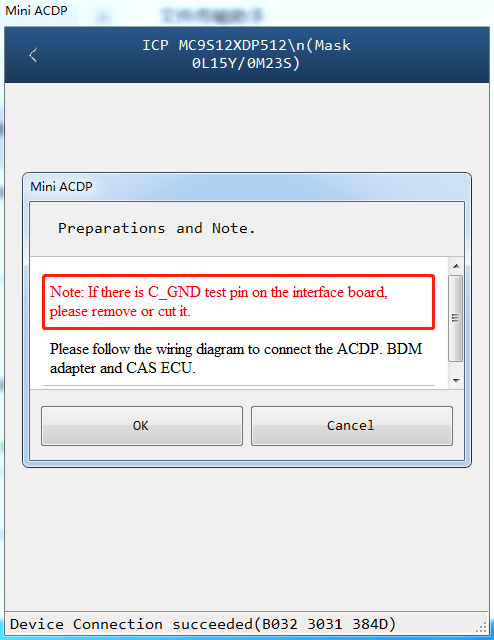

At the moment, it is necessary to check whether the C-GND probe on the interface board is removed or cuted.
Reinstall the interface board to read the data once.
The C-GND pin interface board locations are shown as below:
