ACDP Module12 VOLVO Module
Module Function：
Support adding keys and all-key-lost for Volvo semi-smart keys (OBD and ICP) and smart key (ICP).
Module Feature:
1: Free of disassembly, Solderless,No need to remove components, No need to cut the line,No risk of damage to the computer board.
2: Set anti-theft data reading and writing, anti-theft data calculation, key programming in one.
3: The interface board replaces the welding wire, the pin connect with intelligent detection, and the data reading and writing is safe and reliable.
4: With the key unlock function, No longer afraid of loss caused by key be locked.
Overall connection diagram:

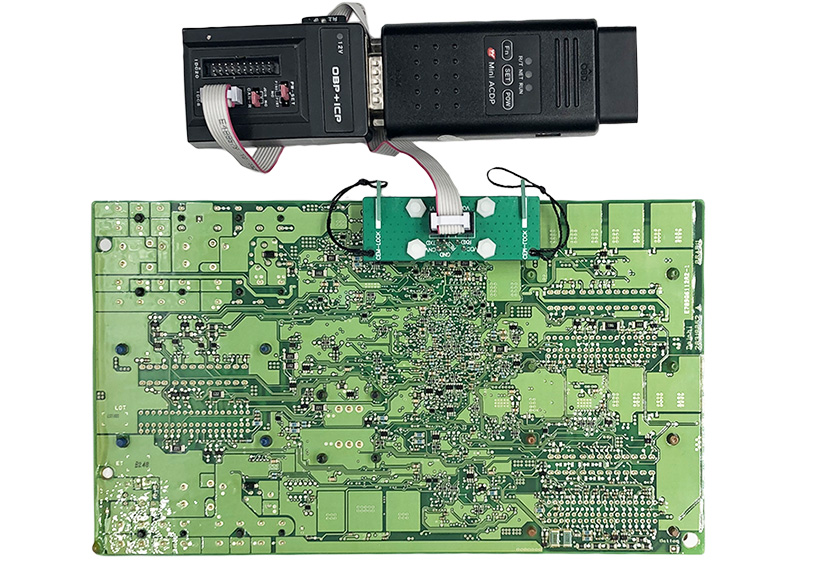

Volvo CEM type 1 ▼

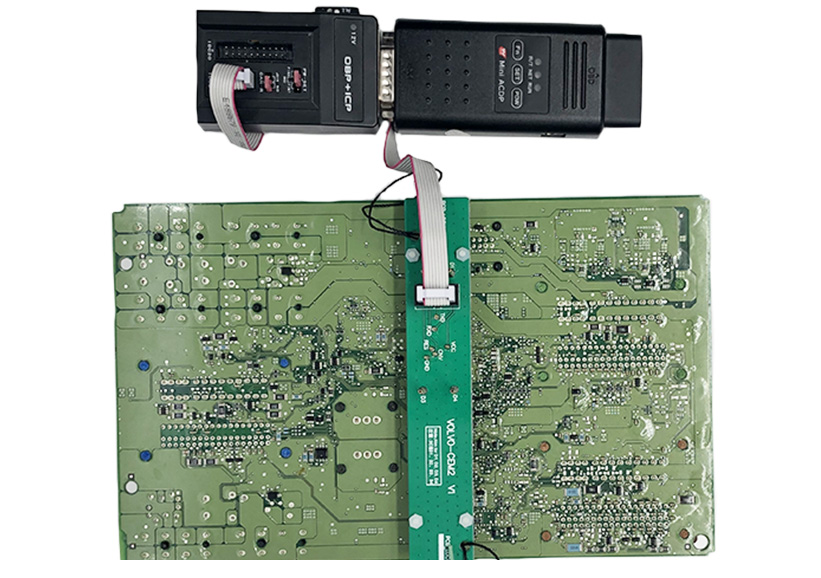

Volvo CEM type 2 ▼

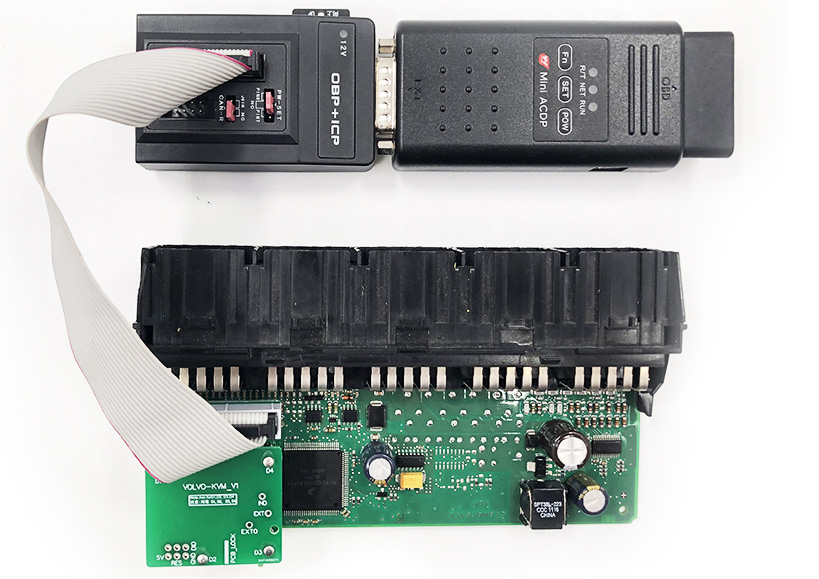

Volvo KVM ▼
APP operation interface：
Configuration List:
ACDP Configuration List (Module12 Volvo Module )
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|

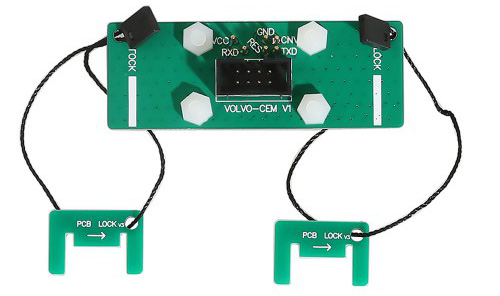

| 1 | VOLVO CEM V1 Interface board |  |
Applicable to connect VOLVO CEM module and read password. | 1 |
| 2 | VOLVO CEM2 V1 Interface board |  |
Applicable to connect VOLVO CEM module and read password. | 1 |
| 3 | VOLVO KVM V1 Interface board |  |
Applicable to connect VOLVO KVM module and read password. | 1 |
| 4 | CAN adapter |  |
Applicable to connect vehicle OBD and ACDP. | 1 |
| 5 | VOLvo Copperpillar Package (M2.5*12+6mm)x2 (M2.5*20+6mm)x1 |
 |
Applicable to fix OLVO interface board. | 3 |
| 6 | Test Points cleaning probes |  |
Applicable to clean Test Points. | 1 |
