ACDP Module 19 SH725XX Gearbox Clone
Module function：
1：Support all ZF 8HP gearbox clone. Supported car brands: BMW, JLR, VW/Audi, Rolls-Royce, Porsche, Bentley, Aston Martin, Lamborghini, Maserati, Dodge, Jeep, Chrysler, etc.
2：Support VW/Audi DQ380/DQ381 0DE gearbox clone.
3：Support Mercedes-Benz 9GT (VGS-NAG3) gearbox clone.
4：Support BMW 7-dual-clutch (GETAG 7DCT) gearbox clone.
5：Support BMW 7-dual-clutch (TEMIC DKG) gearbox clone.
Overall connection diagram：

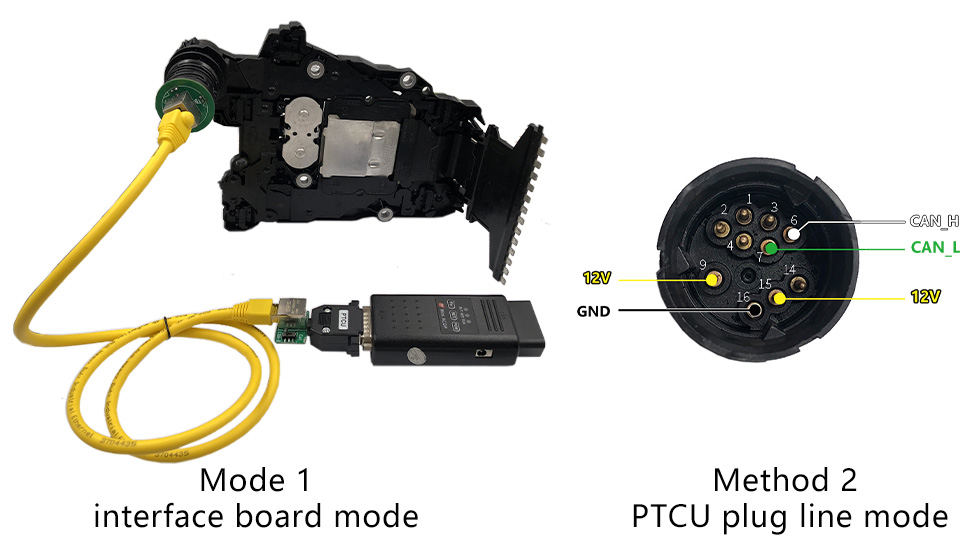

ZF 8HP ▼

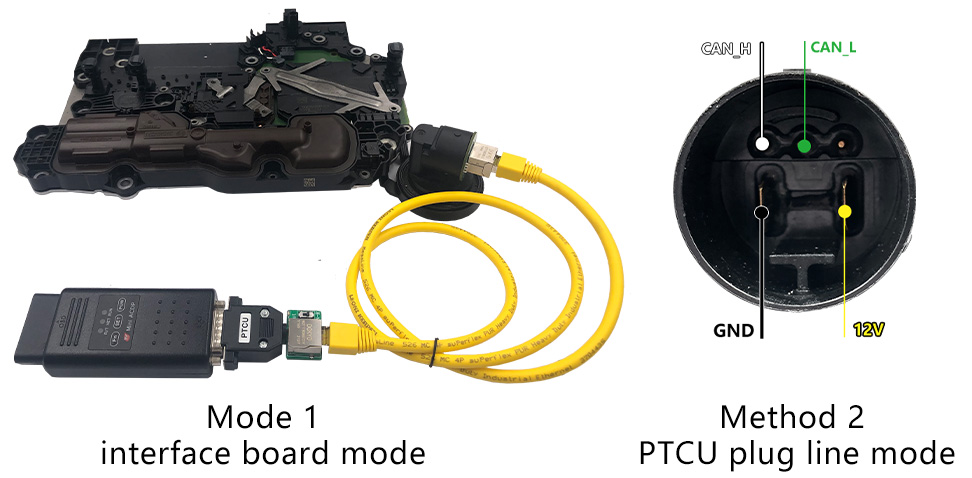

DQ380/DQ381 0DE ▼

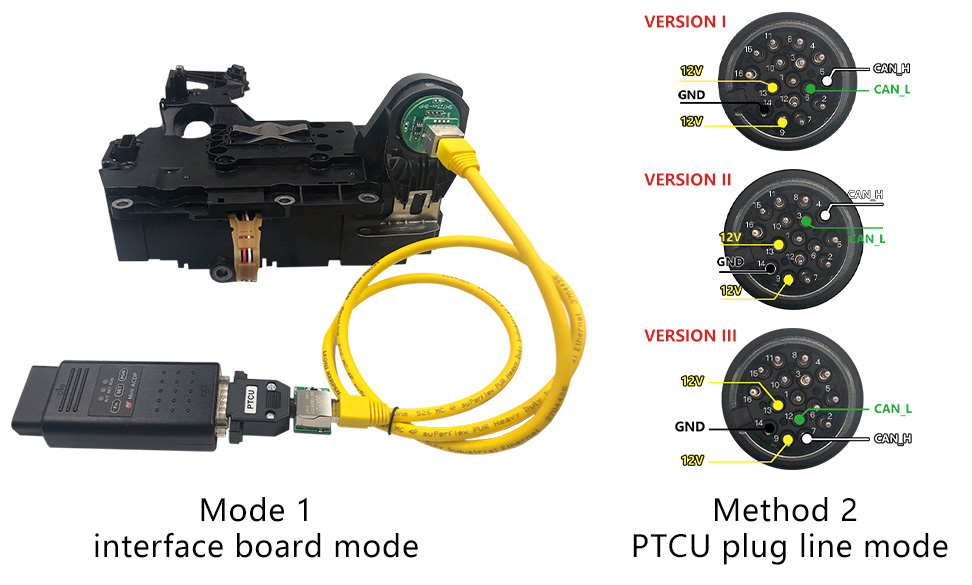

9GT(VGS-NAG3) ▼

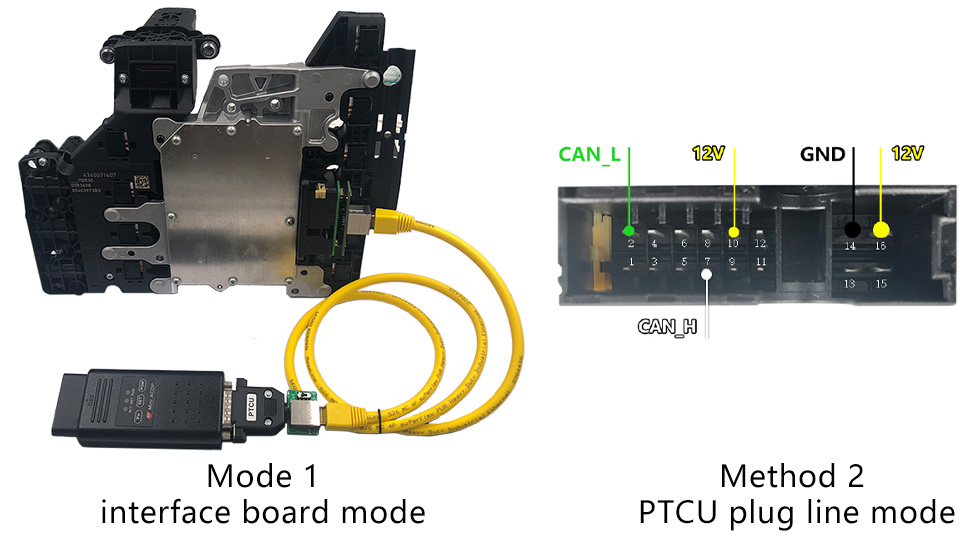

BMW-Getrag 7DCT ▼

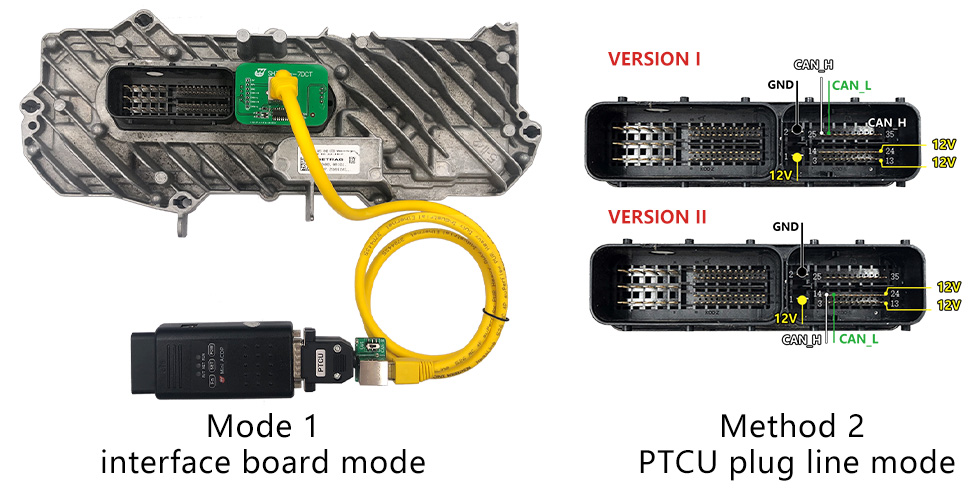

BMW-TEMIC DKG ▼
APP operation interface：
BMW 8HP ▼
DQ380/DQ381 0DE ▼
Benz 9GT（VGS-NAG3）▼
BMW-Getrag 7DCT ▼
BMW-TEMIC DKG ▼
Configuration List:
ACDP Configuration List (Module 19 SH725xx gearbox clone)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | SH725xx-0DE Interface board |  |
Applicable to connect VW/Audi DQ380/DQ381 0DE gearbox | 1 |
| 2 | SH725xx-9GT Interface board |  |
Applicable to connect MB 9GT(VGS-NAG3) gearbox | 1 |
| 3 | SH725xx-8HP Interface board |  |
Applicable to connect ZF 8HP gearbox | 1 |
| 4 | SH725xx-7DCT Interface board |  |
Applicable to connect BMW 7-dual-clutch（7DCT） gearbox | 1 |
| 5 | BMW-DKG Interface board |  |
Applicable to connect BMW 7-dual-clutch（DKG） gearbox | 1 |
| 6 | DB15-LAN adapter |  |
Applicable to connect ACDP host and TCU cable | 1 |
| 7 | TCU cable |  |
Applicable to connect PTCU adapter and interface board | 1 |
| 8 | PTCU cable |  |
Applicable to connect ACDP host and gearbox | 1 |
