ACDP Module5 Fujitsu CPU MB91F
Module Function：
Support Fujitsu CPU MB91F (Honda Fit, KIA K3/K5, Sonata 9, etc.) Mileage adjustment.
Module Feature:
1:The interface board replaces the welding wire.
2:The pin connect with intelligent detection.
3:The data reading and writing is safe and reliable.

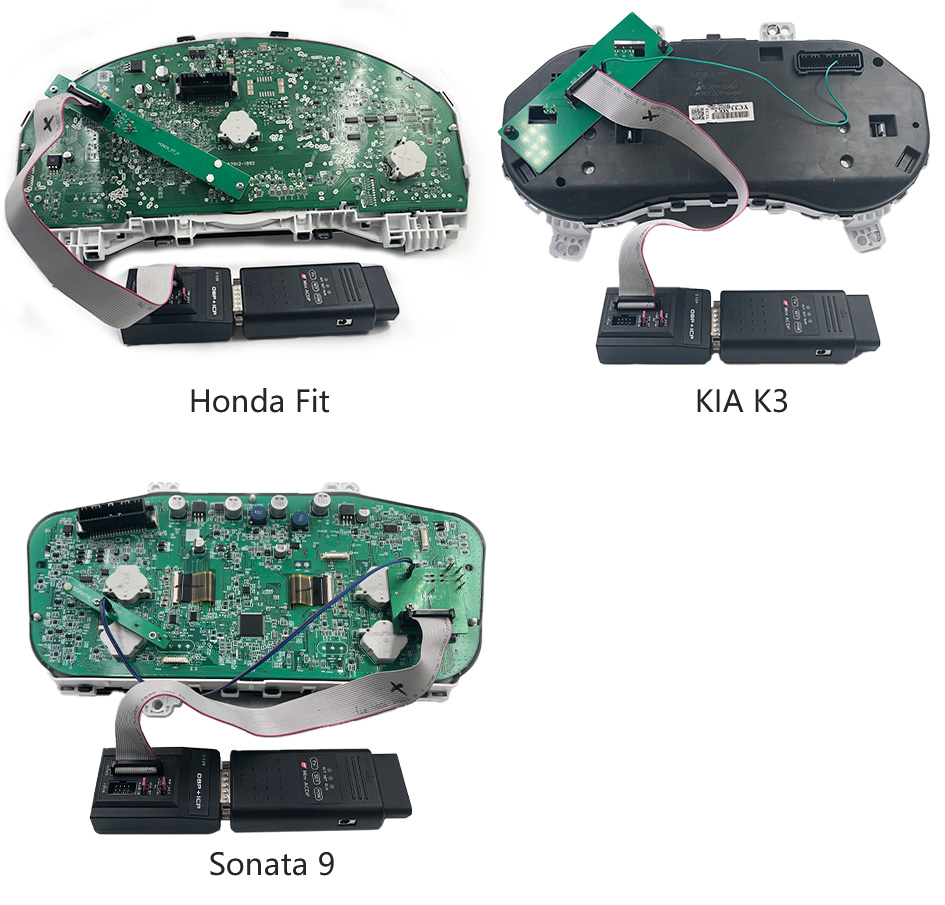

Overall connection diagram:

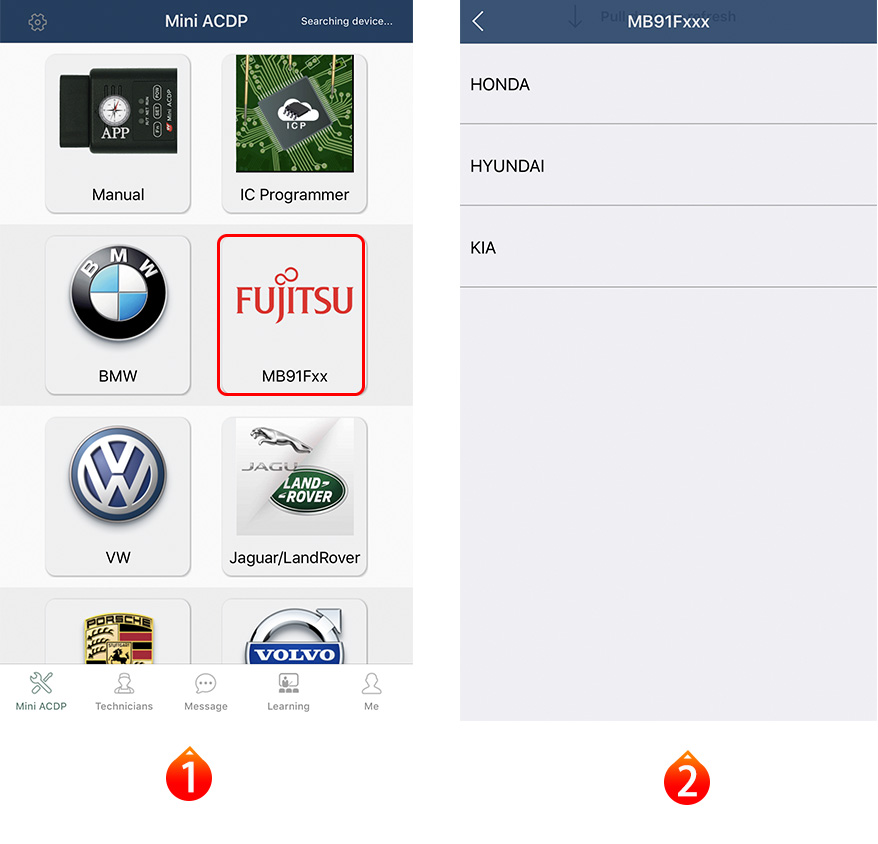

APP operation interface：
Configuration List:
ACDP Configuration List (Module5 MB91FXX CPU)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | HONDA FIT DELUXE Interface board |  |
Applicable to connect HONDA FIT DELUXE odometer test point. | 1 |
| 2 | HONDA FIT GENERAL Interface board |  |
Applicable to connect HONDA FIT GENERAL odometer test point. | 1 |
| 3 | KIA K3 Interface board |  |
Applicable to connect KIA K3 odometer test point. | 1 |
| 4 | KIA K5 Interface board -1 |  |
Applicable to connect KIA K5 odometer test point 1. | 1 |
| 5 | KIA K5 Interface board -2 |  |
Applicable to connect KIA K5 odometer test point 2. | 1 |
| 6 | Sonata Interface board -1 |  |
Applicable to connect Sonata odometer test point 1. | 1 |
| 7 | Sonata Interface board -2 |  |
Applicable to connect Sonata odometer test point 2. | 1 |
| 8 | KIA K3 Interface board Nylon rivets package (R5105) |  |
Applicable to fix KIA K3 Interface board. | 4 |
| 9 | MB91FXX CPU General screw package(M3×20mm) |  |
Applicable to fix Honda, KIA, Hyundai Interface board. | 7 |
