ACDP Module46 VGS4-0-NAG2 Gearbox Virgin/Data transfer
Module function：

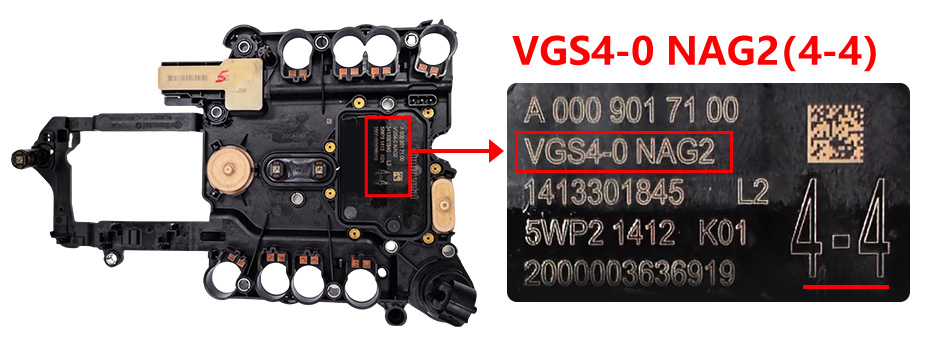

Supports MB VGS4-0-NAG2(4-4) TCU virginizing and personalizing data transfer, thus enabling the TCU replacement.
Module Features：
Integrates the functions of reading coding , virginizing/transferring data, programming, and writing coding. No need to use any third-party devices to program and code.The TCU after data transfer can be directly installed and working.

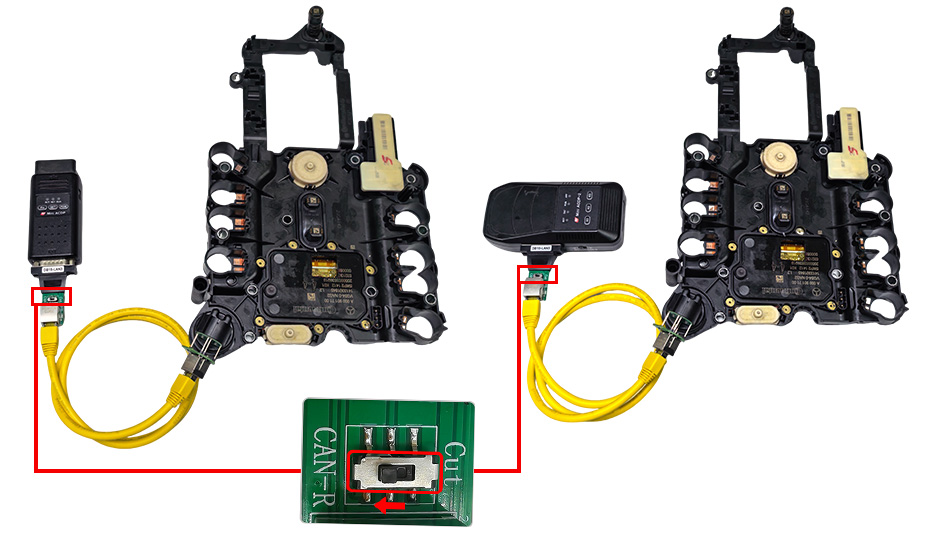

Module46 Overall connection diagram：

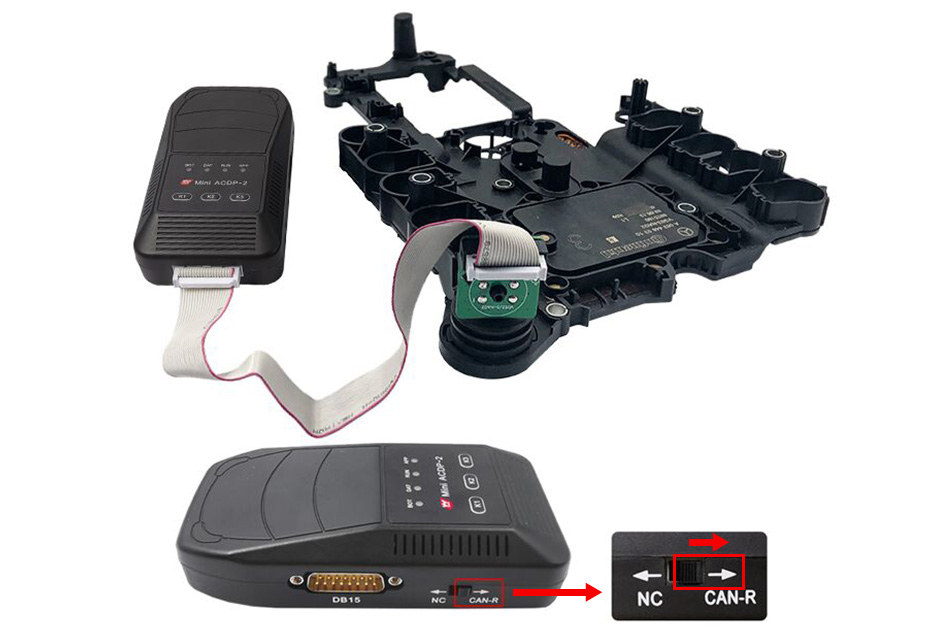

Short the junmper cap to the "CAN-R " port accordingto the marked position
Module Description：
For customers who have already purchased ACDP Module 16, its only necessary to buy the license for Module 46 !

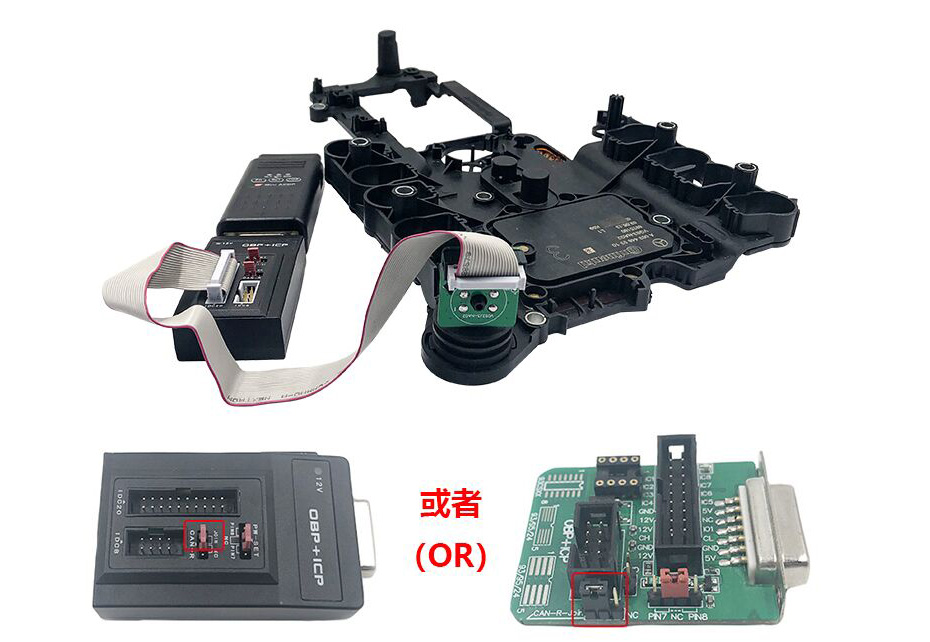

Short the junmper cap to the "CAN-R " port accordingto the marked position
Short the junmper cap to the "CAN-R-Join“ port according to the marked position

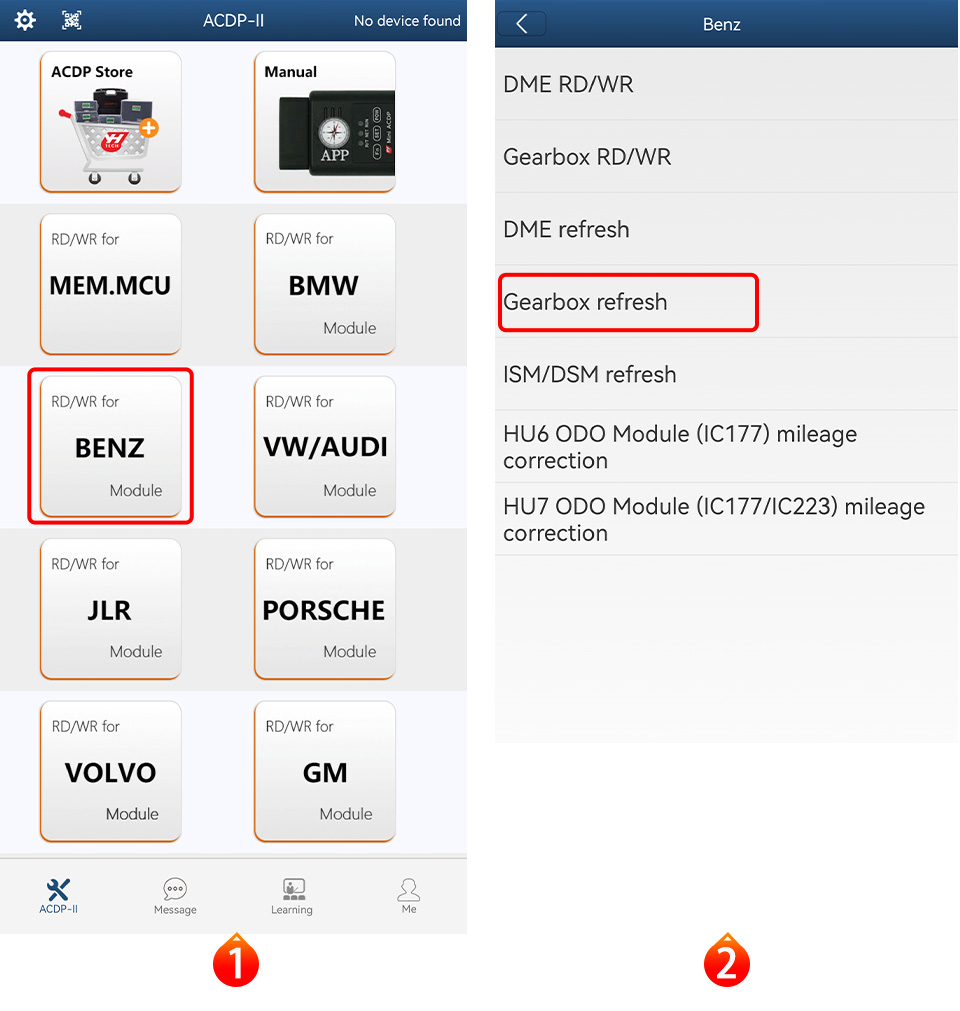

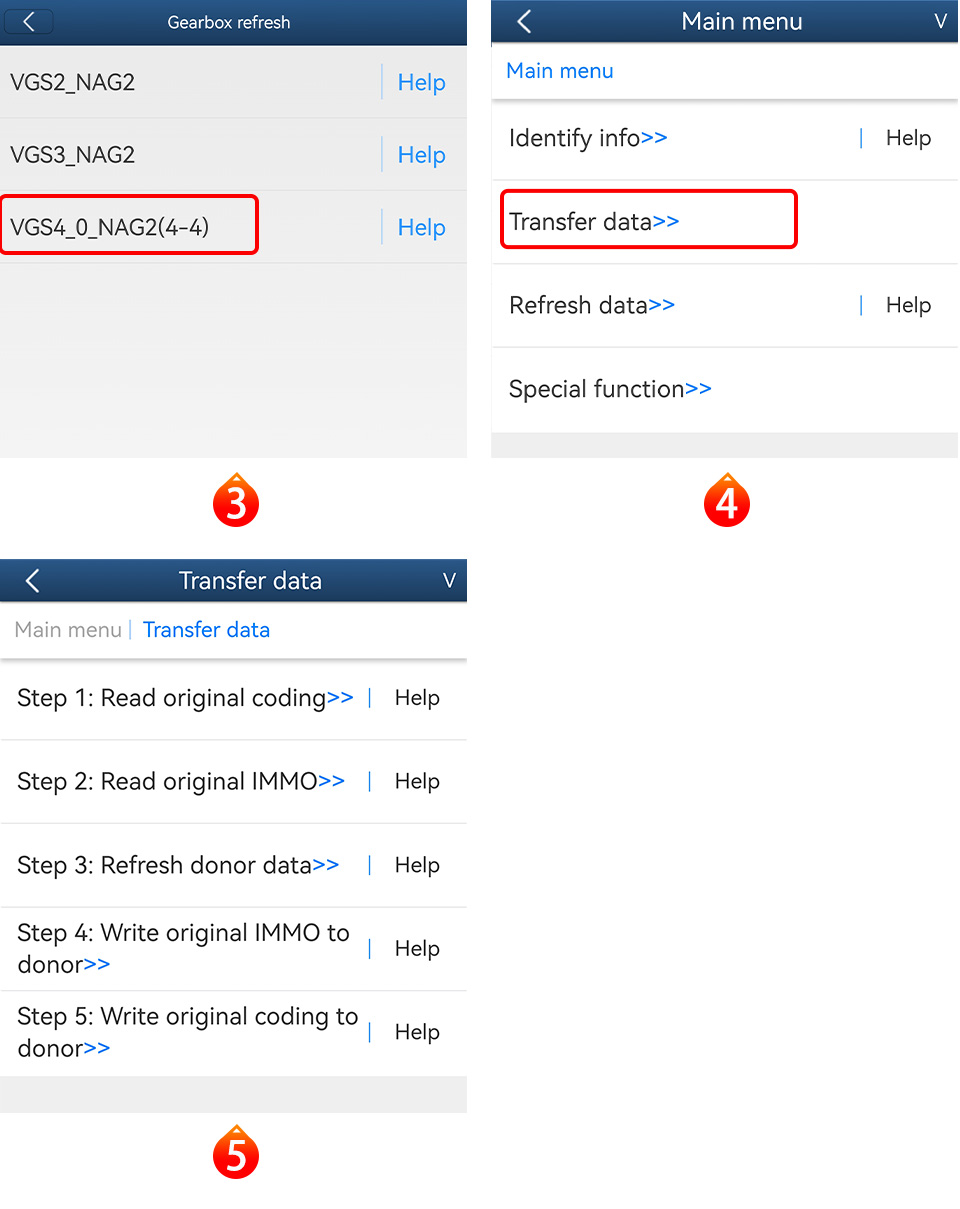

APP operation interface：
Configuration List:
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | VGS4-0-NAG2 Interface board |  |
Applicable to connect MB VGS4-0-NAG2 gearbox | 1 |
| 2 | DB15-LAN3 adapter |  |
Applicable to connect ACDP host and TCU cable | 1 |
| 3 | TCU cable |  |
Applicable to connect DB15-LAN adapter and interface board | 1 |
