ACDP BMW BDC2/BDC3/BCP/LCD Key (Encrypted Chip) Copy Interface Board Kit
(Need to work with ACDP Module 38 license)
Functions：
The BDC2 working key data can be written to original BDC2, BDC3, BCP, and LCD keys.
The BDC3 working key data can be written to original BDC2, BDC3, BCP, and LCD keys.
The LCD working key data can be written to original BDC2, BDC3, BCP, and LCD keys.
The BCP (without UWB) working key data can be written to original BDC2, BDC3, BCP, and LCD keys.
The BCP (with UWB) working key data can only be written to original BCP (with UWB) keys.
Overall connection diagram：

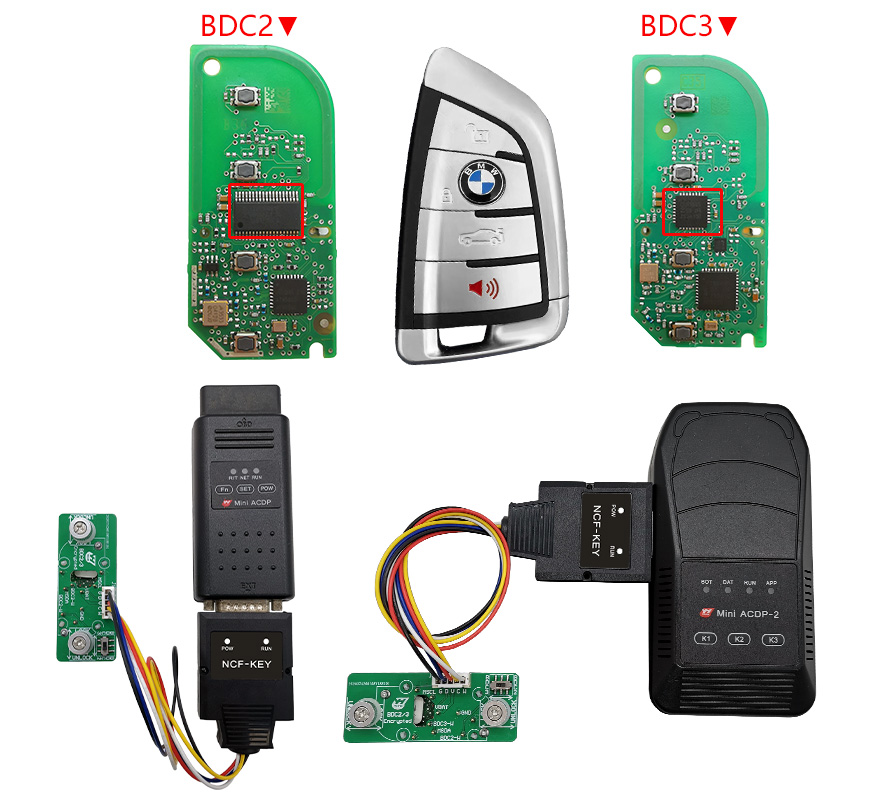

▼ BMW BDC2/BDC3 Encrypted Chip Key

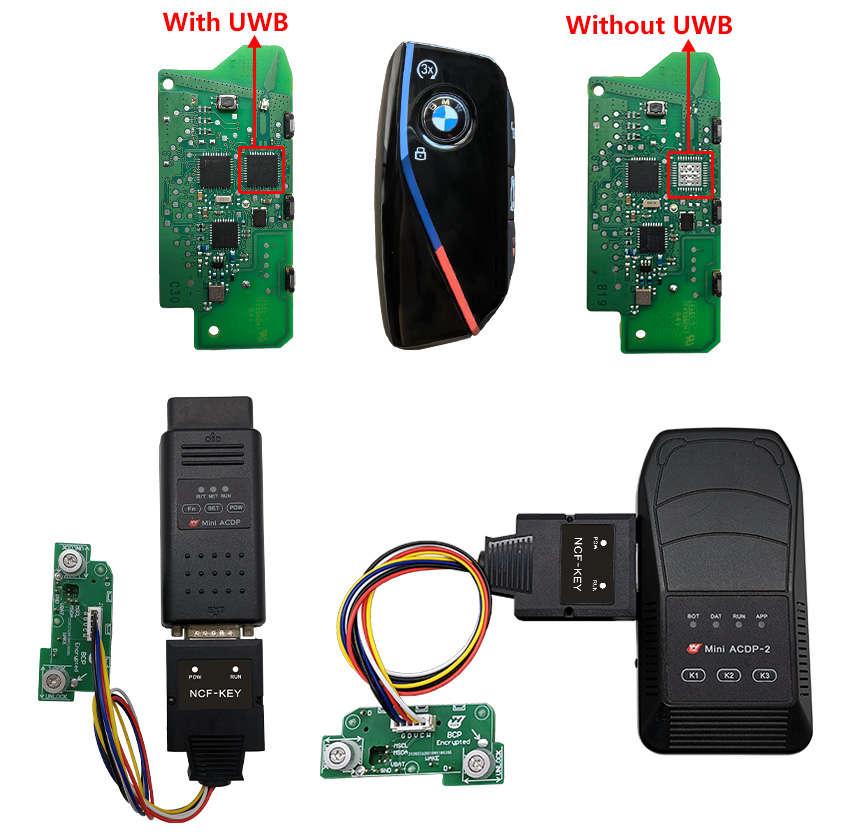

▼ BMW BCP Encrypted Chip Key

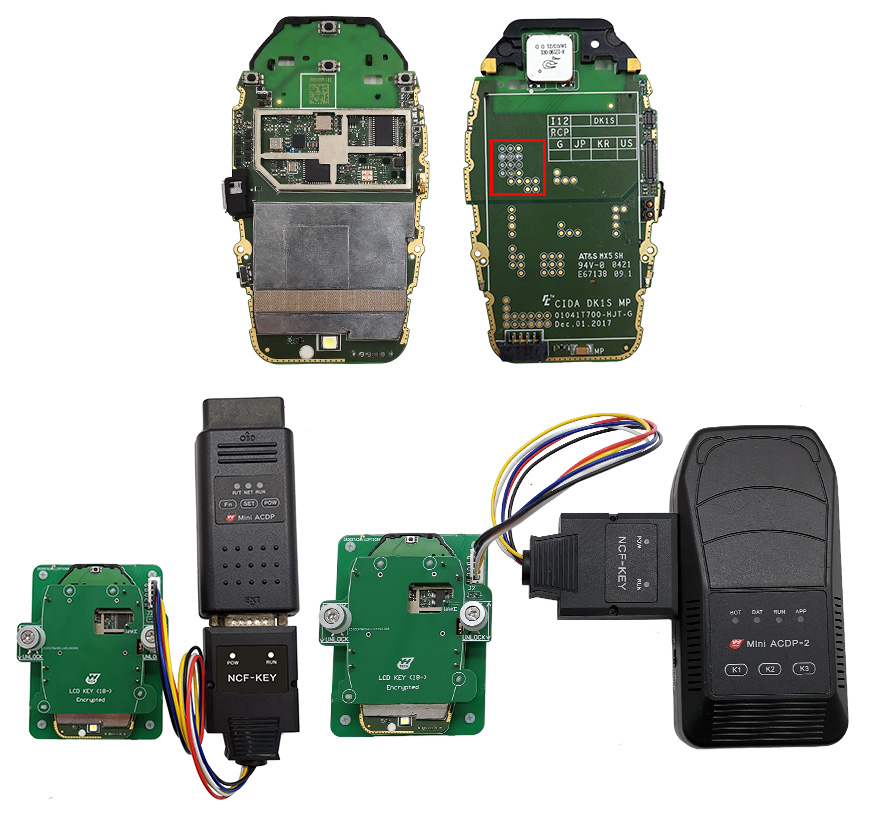

▼ BMW LCD Key（Encrypted Chip）
▼ LCD Key -2015 year
▼ LCD Key 2015-2017 year
▼ LCD Key 2018- year

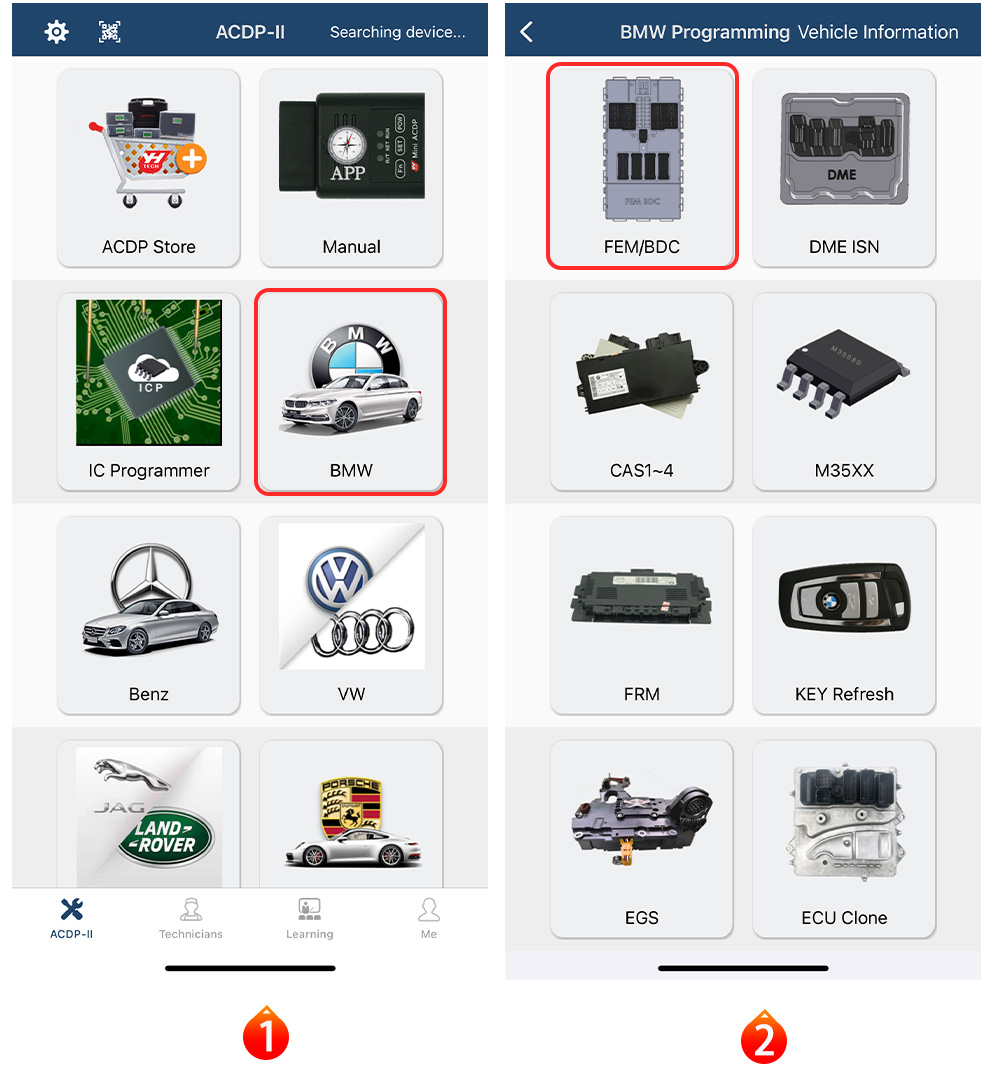

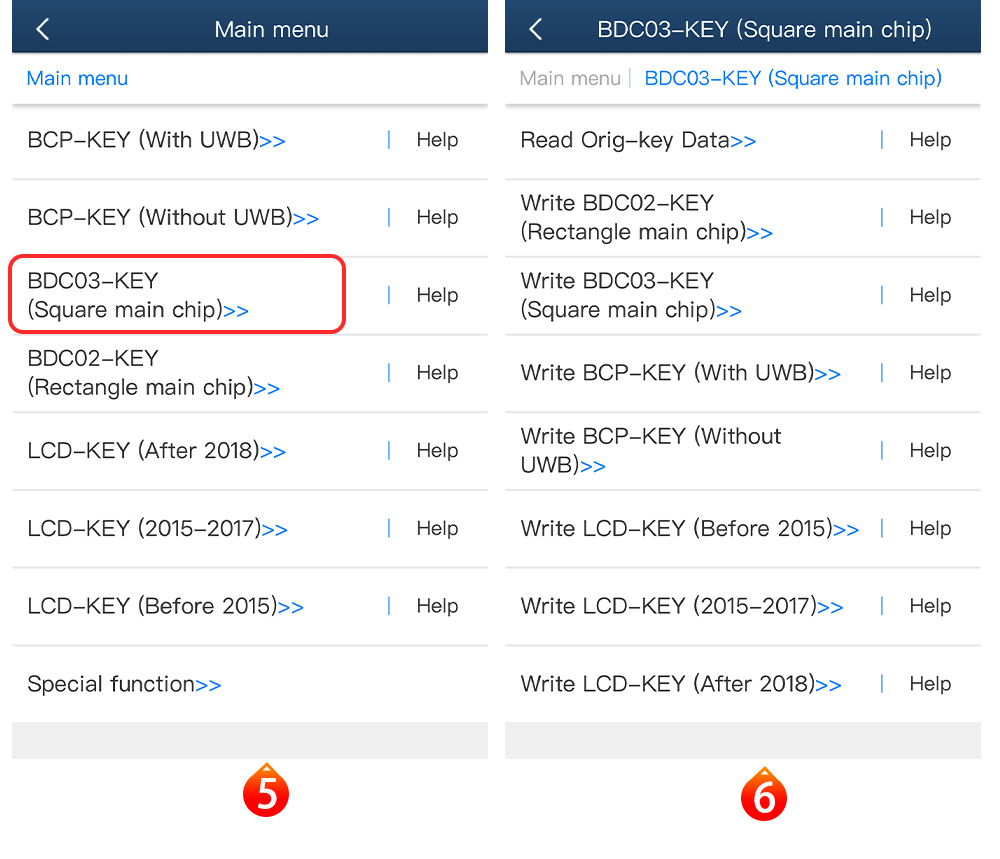

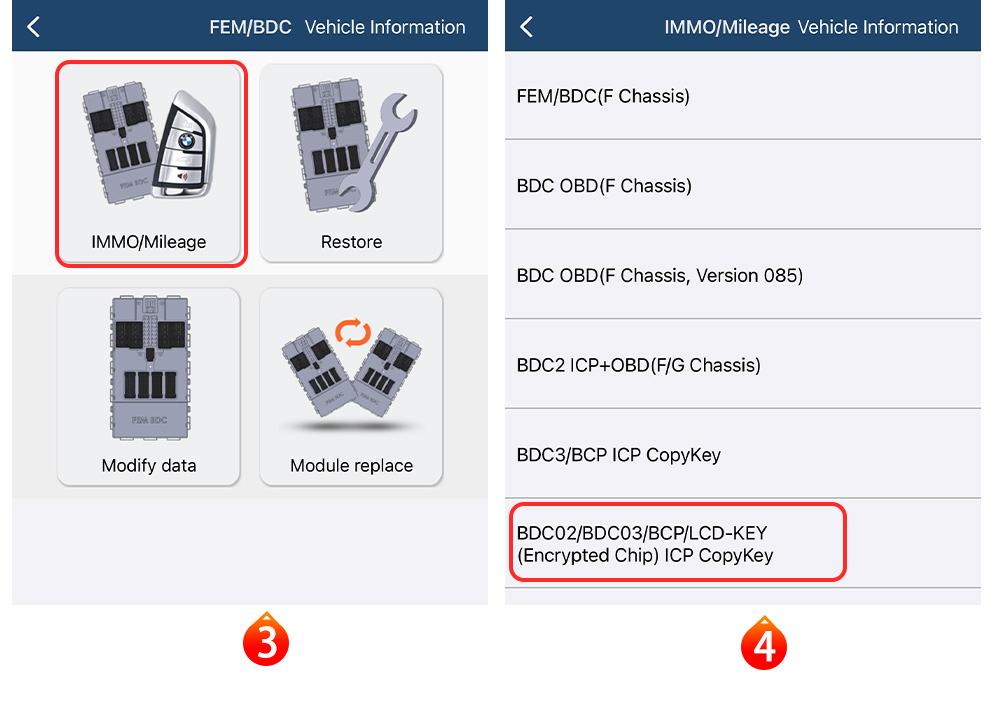

APP operation interface：
Configuration List:
ACDP Configuration List (Module43 Nissan 07A gearbox read / write data)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | BDC2/BDC3 encrypted chip keys copying Interface board |  |
Applicable to connect BDC2/BDC3 encrypted chip keys | 1 |
| 2 | BCP encrypted chip keys copying Interface board |  |
Applicable to connect BCP encrypted chip keys | 1 |
| 3 | LCD（-15） Key Base Interface Board |  |
Applicable to Securing LCD（-15） Key Interface Board | 1 |
| 4 | LCD（-15） Key Upper Cover Interface Board |  |
Applicable to connect LCD（-15） Key Interface Board | 1 |
| 5 | LCD（15-17） Key Base Interface Board |  |
Applicable to Securing LCD（15-17） Key Interface Board | 1 |
| 6 | LCD（15-17） Key Upper Cover Interface Board |  |
Applicable to connect LCD（15-17） Key Interface Board | 1 |
| 7 | LCD（18-） Key Base Interface Board |  |
Applicable to Securing LCD（18-） Key Interface Board | 1 |
| 8 | LCD（18-） Key Upper Cover Interface Board |  |
Applicable to connect LCD（18-） Key Interface Board | 1 |
| 9 | NCF-KEY adapter |  |
Applicable to connect ACDP host and BDC2/BDC3/BCP/LCD encrypted chip keys Interface board | 1 |
| 10 | 5pin ICP expansion cable |  |
Applicable to connect BDC2/BDC3/BCP/LCD encrypted chip key boards by wire bonding | 1 |
